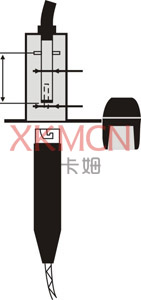

連接示意圖
Schematic diagram of connection |
 |
| XKM/TTDC... 連接器connecto |
 |
| 分支插頭 Socketoutlet adapte | |
| 一、產品概述 Genera |
1. 用于暫時停電或短路的線路的分支連接。
2. 主線：絕緣銅或鋁導線
3. 帶電或停電作業
4. 穿刺線夾主體采用高強度，抗機械變化和氣候變化的絕緣材料制成。
5. 配有緊固力矩螺母的螺釘經抗腐蝕處理（可根據用戶要求提供不銹鋼螺釘），力矩螺母使安裝更簡便、安全、快捷，其恒定穿刺壓力可確保電纜連接達到需要的電氣效果。
6. 支接側裝有保險螺柱、卡口式連接，其端頭鉆孔，用于電壓測量試驗，確保接頭用帽蓋絕緣。該蓋帽裝有可拆除指示以核對相線和中性線。
7. 防水系統保證絕緣，可在水中耐受電壓6KV無擊穿現象。
■ Used for branch connection of temporary power failure or short-circuit line
■ Main line: Insulated copper or aluminum conductor
■ Live-line work or power-cut work is allowable
■ Main body of connector is made of high strength insulating material that anti mecha-nical change or climatic variation.
■ The screw that is equipped with fastening torque nut is anti-corrosion treated (stainl-ess screws are available at request), the torque nut enables the installation to be much simple, safe and quick, its constant puncturing pressure guarantees best electrical effect for the cable connection.
■ Branch connection side mounting has safety stud bolt and bayonet coupling, the end is bored, for voltage measurement test, make sure that the adapter should be insulated by cap. This nut cap is equipped with demountable indicator for verifying the phase line and neutral line.
■ The waterproof system shall guarantee insulation, it is able to withstand voltage of 6KV in water without breakdown phenomenon. |
 |
力矩螺母
Torque nut | | |
