一、產品概述 Genera

         浙江西卡姆電力設備有限公司自主研發、生產的XKM/HYT系列主干線分線器是一種全新的作用于主干線上的專用分線低壓電器件，是目前國內優質產品。
          現行的從電纜主干線上取得分支線的方法就是切斷主干線，將干線兩頭和所分的支線一同壓接后包裹起來，或是將分支線綁軋在主干線上。無論哪種方法既繁瑣又不安全，且損壞原主干線整體機械強度，分線接點電阻大、可靠性差、易發熱，很容易發生事故。
         主干線分線器一改過去傳統的分線方法，從主干線上分線方便靈活，安全可靠，既省去安裝工時又節省工程造價，并且拆卸自如，只用一般手持工具即可完成。
         XKM/HYT series terminal block is an important component in low voltage electric equipment It is mainly applied for branching the trunk line, It is the most advanced terminal block in China at present.
         The current method to branch wire from the cable trunk is to cut off the trunk line, and crimp two ends of trunk line and the required branch, and pack them, or to bind the branch line to trunk line. Both of them have trouble and insecurity, but also impairs the whole mechanical strength of trunk line, and results in large contact resistance of branch, weak reliability,easy heating and accident.
         Compared with traditional branching methods, this terminal block shows flexible, safe and reliable feature in branching the trunk line. It saves the time of mounting and reduce the construction price of project, and takes convenience in disassembling.

二、技術參數 Technicalp arameters

1. 穩熱定性Thermal stability 5.2KA 1S
2. 機械強度******Max mechanical strength: 20：20N*M
3. 溫升Temperature rise：350A，10.5k
4. 正常工作最高溫度：Max normal operation temperature：140℃
5. 阻燃等級Flame retardant rating：FVO
6. 漏電起痕Comparative tracking index Ct1：≥175

三、技術特點 Technicalfe atures

1. 全安性 Safety
使用本主干線分線器不剪斷主干線，徹底避免了原始施工中繁鎖又不安全的問題，保證了主干線的機械強度 ( 尤其豎井內主干線的垂直強度)從而提高了主干線分線的安全性。
Being unnecessary to cut off the trunk line, terminal block totally avoids trouble and insecurity occurring in the original construction, and guarantees mechanical strength of trunk line, especially the vertical strength of trunk line in the vertical shaft, so as to improve the reliability in branching the trunk line.

2. 便方性 Convenience
使用方法簡單，不受空間地點限制，在主干線任何線段上分線均不受約束，且拆卸自如，可反復使用，只用一般手持工具即可完成。
Simple operation methods, no confine in space, and no restriction in branching on any wire section of trunk line, flexible disassembling, repetitive use, the operation that only needs a common hand tool.

3. 靠可性 Reliability
絕緣底座具有優異的電氣性能，耐熱性和抗腐蝕性，具有較強的抗震動和抗擊性能。主體為銅質特殊力學異型結構制造，表面鍍鎳。因此更保證了線纜的導電及其它性能。
The insulator foot has notable features like advanced electric performance, thermal endurance and anticorrosion, strong vibration resistance and impact resistance. The main body is designed into special mechanical profiled structure of copper, The surface is nickel-plated. It guarantees better electricity conductivity and other performance.

4. 活靈性Flexibility
        主干線分線器規格齊全，從25mm2-240mm2主干線上均能分出多路2.5mm2-70mm2的支線；用戶可根據工程的不同需要靈活組合。
        With complete specification, terminal block from 25mm to 240mm can be divided into multi branches from 2.5mm to 70mm .
5. 用使范圍Applicable range
        主干線分線器使用范圍廣泛，適用在工業車間的線路上、居民用樓房各層電表箱內、
各種商廈的電氣豎井供電回路中、電纜橋架內、配電箱內、架空線路上、各種機械設備控制
柜內及10KV高壓柜小母線二次線路中。
        With wide applicable range, this terminal block is most suitable for the circuits
of industrial workshops, floor electric meter boxes of residential areas, power supply circuits of electric vertical shaft of commercial buildings, cable trays, distribution boxes, overhead lines, mechanical equipment control cabinet and secondary circuit of 10KV high-voltage cabinet small busbars.

四、主要參數 Main technical parameter

分線器型號 Model	分線器適用范圍說明 Applicable range
XKM/HYT-240/70	適用于主干線截面240mm2，可分出支線2×70mm2 Applicable for main trunk circuit of sectional area 240mm2, and available in separating the branch wires of 2×70mm2 out.
XKM/HYT-185/70	適用于主干線截面185mm2，可分出支線2×70mm2 Applicable for main trunk circuit of sectional area 185mm2, and available in separating the branch wires of 2×70mm2 out.
XKM/HYT-150/50	適用于主干線截面150mm2，可分出支線4×50mm2 Applicable for main trunk circuit of sectional area 150mm2, and available in separating the branch wires of 4×50mm2 out.
XKM/HYT-120/50	適用于主干線截面120mm2，可分出支線4×50mm2 Applicable for main trunk circuit of sectional area 120mm2, and available in separating the branch wires of 4×50mm2 out.
XKM/HYT-95/50	適用于主干線截面95mm2，可分出支線2×50mm2 Applicable for main trunk circuit of sectional area 95mm2, and available in separating the branch wires of 2×50mm2 out.
XKM/HYT-70/50	適用于主干線截面70mm2，可分出支線2×50mm2 Applicable for main trunk circuit of sectional area 70mm2, and available in separating the branch wires of 2×50mm2 out.
XKM/HYT-50/35	適用于主干線截面50mm2，可分出支線3×35mm2 Applicable for main trunk circuit of sectional area 50mm2, and available in separating the branch wires of 3×35mm2 out.
XKM/HYT-35/25	適用于主干線截面35mm2，可分出支線2×25mm2 Applicable for main trunk circuit of sectional area 35mm2, and available in separating the branch wires of 2×25mm2 out.
XKM/HYT-25/6	適用于主干線截面25mm2，可分出支線2×16mm2 Applicable for main trunk circuit of sectional area 25mm2, and available in separating the branch wires of 2×16mm2 out.
XKM/HYT-16/2.5-10	適用于主干線截面16mm2，可分出支線8×2.5mm2 Applicable for main trunk circuit of sectional area 16mm2, and available in separating the branch wires of 8×2.5mm2 out.
	6×4mm2 4×6mm2 2×10mm2

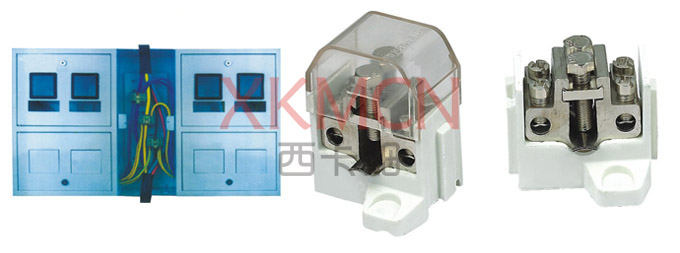

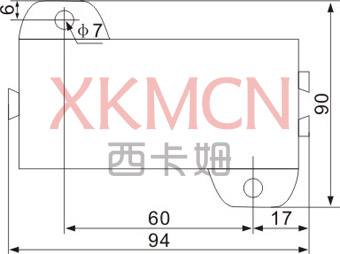

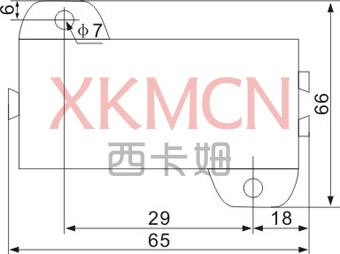

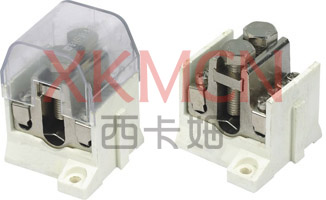

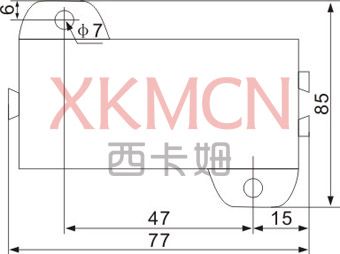

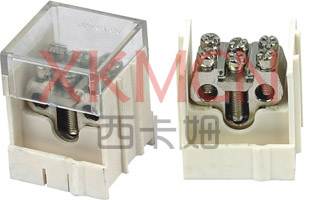

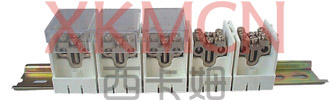

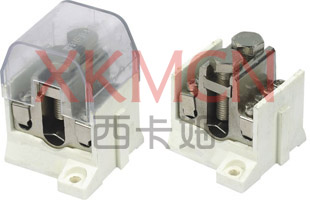

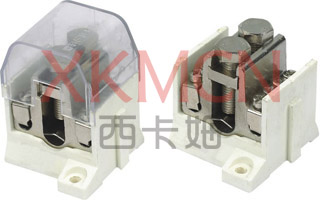

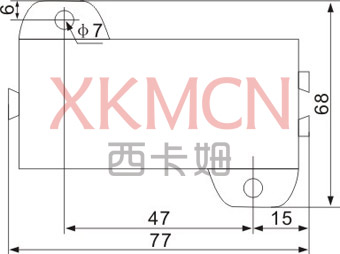

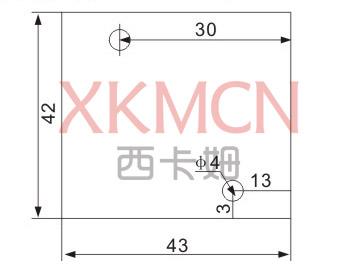

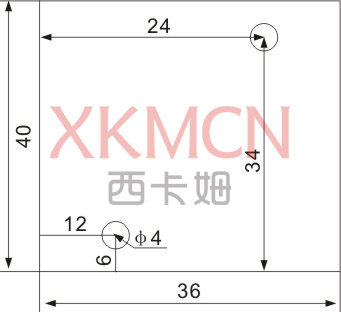

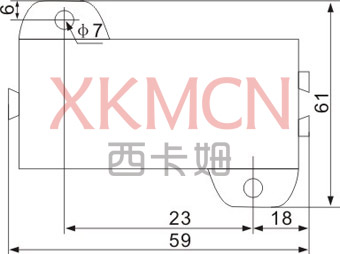

五、外形及安裝尺寸 Outline and mounting size

XKM/HYT-25/2×16
訂貨號(Order No.): 110195

主干線分線器Terminal block XKM/HYT-25/2×1
極數 Pole no	型式 Type	壓線范圍 Crimping rang	外形尺寸 Outline size (高H×厚T×寬W)mm	箱體尺寸 Box body size 長L×寬W×高H (參考Reference
1P	一路干線、一路或二路分支 One-circuit trunk ine,onecircuit or two-circuit branch line	干線Trunk line 25mm2 分支Branch line 2.5-16mm2	40×54×36	200×150×120
2P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 25mm2 分支Branch line 2.5-16mm2	40×54×70	200×150×120
3P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 25mm2 分支Branch line 2.5-16mm2	40×54×104	200×150×120
4P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 25mm2 分支Branch line 2.5-16mm2	40×54×138	250×200×120
5P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 25mm2 分支Branch line 2.5-16mm2	40×54×172	300×250×120

XKM/HYT-35/2×25
訂貨號(Order No.): 110196

主干線分線器Terminal block XKM/HYT-35/2×25
極數 Pole no	型式 Type	壓線范圍 Crimping rang	外形尺寸 Outline size (高H×厚T×寬W)mm	箱體尺寸 Box body size 長L×寬W×高H (參考Reference
1P	一路干線、一路或二路分支 One-circuit trunk ine,onecircuit or two-circuit branch line	干線Trunk line 35mm2 分支Branch line 4-25mm2	42×54×43	200×150×120
2P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 35mm2 分支Branch line 4-25mm2	42×54×84	200×150×120
3P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 35mm2 分支Branch line 4-25mm2	42×54×125	200×160×120
4P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 35mm2 分支Branch line 4-25mm2	42×54×165	250×220×120
5P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 35mm2 分支Branch line 4-25mm2	42×54×205	300×270×120

XKM/HYT-50/2×35
訂貨號(Order No.): 110197

主干線分線器Terminal block XKM/HYT-50/2×35
極數 Pole no	型式 Type	壓線范圍 Crimping rang	外形尺寸 Outline size (高H×厚T×寬W)mm	箱體尺寸 Box body size 長L×寬W×高H (參考Reference
1P	一路干線、一路或二路分支 One-circuit trunk ine,onecircuit or two-circuit branch line	干線Trunk line 50mm2 分支Branch line 6-35mm2	61×70×59	250×200×150
2P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 50mm2 分支Branch line 6-35mm2	61×70×114	250×200×150
3P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 50mm2 分支Branch line 6-35mm2	61×70×170	300×250×150
4P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 50mm2 分支Branch line 6-35mm2	61×70×224	350×300×150
5P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 50mm2 分支Branch line 6-35mm2	61×70×280	400×350×150

XKM/HYT-70/2×50
訂貨號(Order No.): 110198

主干線分線器Terminal block XKM/HYT-70/2×50
極數 Pole no	型式 Type	壓線范圍 Crimping rang	外形尺寸 Outline size (高H×厚T×寬W)mm	箱體尺寸 Box body size 長L×寬W×高H (參考Reference
1P	一路干線、一路或二路分支 One-circuit trunk ine,onecircuit or two-circuit branch line	干線Trunk line 70mm2 分支Branch line 10-50mm	65×79×66	200×200×150
2P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 70mm2 分支Branch line 10-50mm	65×79×128	250×200×150
3P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 70mm2 分支Branch line 10-50mm	65×79×190	350×300×150
4P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 70mm2 分支Branch line 10-50mm	65×79×257	400×350×150
5P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 70mm2 分支Branch line 10-50mm	65×79×314	450×400×150

XKM/HYT-95/2×50
訂貨號(Order No.): 110199

主干線分線器Terminal block XKM/HYT-95/2×50
極數 Pole no	型式 Type	壓線范圍 Crimping rang	外形尺寸 Outline size (高H×厚T×寬W)mm	箱體尺寸 Box body size 長L×寬W×高H (參考Reference
1P	一路干線、一路或二路分支 One-circuit trunk ine,onecircuit or two-circuit branch line	干線Trunk line 95mm2 分支Branch line 10-50mm2	65×79×66	200×200×150
2P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 95mm2 分支Branch line 10-50mm2	65×79×128	250×200×150
3P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 95mm2 分支Branch line 10-50mm2	65×79×190	350×300×150
4P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 95mm2 分支Branch line 10-50mm2	65×79×257	400×350×150
5P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 95mm2 分支Branch line 10-50mm2	65×79×314	450×400×150

XKM/HYT-120/2X50
訂貨號(Order No.): 110200

主干線分線器Terminal block XKM/HYT-120/2×50
極數 Pole no	型式 Type	壓線范圍 Crimping rang	外形尺寸 Outline size (高H×厚T×寬W)mm	箱體尺寸 Box body size 長L×寬W×高H (參考Reference
1P	一路干線、一路或二路分支 One-circuit trunk ine,onecircuit or two-circuit branch line	干線Trunk line 120mm2 分支Branch line 10-50mm2	68×90×77	300×250×180
2P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 120mm2 分支Branch line 10-50mm2	68×90×150	300×250×180
3P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 120mm2 分支Branch line 10-50mm2	68×90×223	400×350×180
4P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 120mm2 分支Branch line 10-50mm2	68×90×296	450×400×180
5P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 120mm2 分支Branch line 10-50mm2	68×90×369	500×450×180

XKM/HYT-150/4×50
訂貨號(Order No.): 110201

主干線分線器Terminal block XKM/HYT-150/4×5
極數 Pole no	型式 Type	壓線范圍 Crimping rang	外形尺寸 Outline size (高H×厚T×寬W)mm	箱體尺寸 Box body size 長L×寬W×高H (參考Reference
1P	一路干線、二路或四路分支 One-circuit trunk line,twocircuit or four-circuit branch line	干線Trunk line 150mm2 分支Branch line 10-50mm2	85×95×77	300×250×180
2P	一路干線、二路或四路分支 One-circuit trunk line,twocircuit or four-circuit branch line	干線Trunk line 150mm2 分支Branch line 10-50mm2	85×95×150	300×250×180
3P	一路干線、二路或四路分支 One-circuit trunk line,twocircuit or four-circuit branch line	干線Trunk line 150mm2 分支Branch line 10-50mm2	85×95×223	400×350×180
4P	一路干線、二路或四路分支 One-circuit trunk line,twocircuit or four-circuit branch line	干線Trunk line 150mm2 分支Branch line 10-50mm2	85×95×296	450×400×180
5P	一路干線、二路或四路分支 One-circuit trunk line,twocircuit or four-circuit branch line	干線Trunk line 150mm2 分支Branch line 10-50mm2	85×95×369	500×450×180

XKM/HYT-150/4×50 壓力范圍為干線150mm2 分支25-50mm2,其它同上
XKM T-150/4×50 Pressure range reaches trunk line of 150mm2, and the branch line of 25-50mm , others are the same as above.

XKM/HYT-185/2×70
訂貨號(Order No.): 110202

主干線分線器Terminal block XKM/HYT-150/4×5
極數 Pole no	型式 Type	壓線范圍 Crimping rang	外形尺寸 Outline size (高H×厚T×寬W)mm	箱體尺寸 Box body size 長L×寬W×高H (參考Reference
1P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 185mm2 分支Branch line 16-70mm2	85×95×77	300×250×180
2P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 185mm2 分支Branch line 16-70mm2	85×95×150	300×250×180
3P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 185mm2 分支Branch line 16-70mm2	85×95×223	400×350×180
4P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 185mm2 分支Branch line 16-70mm2	85×95×296	450×400×180
5P	一路干線、一路或二路分支 One-circuit trunk line,onecircuit or two-circuit branch line	干線Trunk line 185mm2 分支Branch line 16-70mm2	85×95×369	500×450×180

XKM/HYT-240/2×95 240/4×70
訂貨號(Order No.): 110203

主干線分線器Terminal block XKM/HYT-240/2×95(XKM)
極數 Pole no	型式 Type	壓線范圍 Crimping rang	外形尺寸 Outline size (高H×厚T×寬W)mm	箱體尺寸 Box body size 長L×寬W×高H (參考Reference
1P	一路干線、二路或四路分支 One-circuit trunk line,twocircuit or four-circuit branch line	干線Trunk line 240mm2 分支Branch line 25-95mm2	90×105×94	300×250×180
2P	一路干線、二路或四路分支 One-circuit trunk line,twocircuit or four-circuit branch line	干線Trunk line 240mm2 分支Branch line 25-95mm2	90×105×183	350×300×180
3P	一路干線、二路或四路分支 One-circuit trunk line,twocircuit or four-circuit branch line	干線Trunk line 240mm2 分支Branch line 25-95mm2	90×105×272	500×450×180
4P	一路干線、二路或四路分支 One-circuit trunk line,twocircuit or four-circuit branch line	干線Trunk line 240mm2 分支Branch line 25-95mm2	90×105×361	600×500×180
5P	一路干線、二路或四路分支 One-circuit trunk line,twocircuit or four-circuit branch line	干線Trunk line 240mm2 分支Branch line 25-95mm2	90×105×450	700×600×180
