XKM/JH27-70mm2、XKM/JH27-95mm2 訂貨號(Order No.): 110173

一、產品概述 General

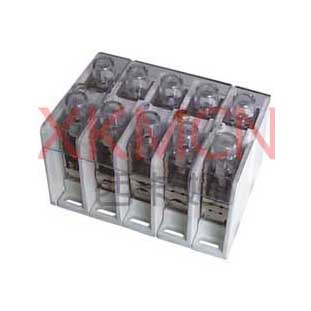

XKM/JH27系列接線端子由絕緣基座、接線框、防護罩三部分組成，接線框由導線夾、螺釘、螺母和支承框組成，導線夾與導線接觸面呈包容形的犬牙交錯結構，具有接觸面大、壓接可靠的特點，通過不同形狀的導線夾的相互組合，使其不僅具有目前使用的接線端子的一般功能，還可派生出大電流分線端子、干線"T”接端子和母線排接線端子。滿足了所有電控配電、成套裝置中的大截面導線連接和導線的分接等各種用途。由于導電部件結構獨特，使得導線的接入更為方便快捷，使用時只需剝?nèi)?dǎo)線絕緣而無需對線端做任何處理便可接入，再也不需一大堆工具伴其左右。使用便捷、工效倍增。該產品的絕緣材料選用優質增強工程塑料，該材料具有優異的電氣性能、耐燃性和抗腐蝕性及絕佳的機械性能，具有較強的抗振動和抗沖擊性能，適用范圍廣。
XKM/JH27 power distribution block is composed of insulator foot, wire frame, protective cover. The wire frame is made up of clamp, screw, nut and supporting fixture. A closed interlocking structure is formed between clamp and conductor contact surface, with large contact surface and reliable crimping. Through combinations of different shapes
of clamps, it can serve as heavy current terminal connector, trunk line T -type connector and busbar connector. It can be applied to large-section conductor connection and branch connection in all electric control distribution equipment and complete equipment. Due to original structure of conductive parts, it is more convenient for conductor to enter only to strip the insulator of conductor, and not to do any treatment for wire terminal Conductor. Therefore, it fully shows high efficiency. Its insulation material is made of the first-class reinforced engineering plastic, which has perfect electric performance, flame resistance, anti-corrosion and mechanical performance, vibration prevention, impact resistance as well as wide application range.

二、主要技術指標 Main technical parameter

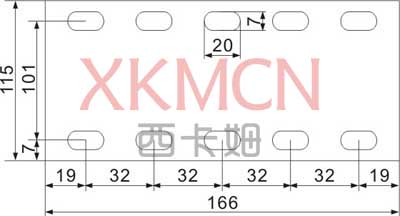

產品型號 Product mode	型式 Type	壓線范圍mm2 Crimping range	外形尺寸 Outline size (厚/T寬W/高Hm m)
XKM/JH27-95	一路進(電纜)一路出(電纜) One-inlet (cable), one-outlet (cable)	16-95	31×N+9/115/76(93)
XKM/JH27-95B	一路進(銅排)一路出(銅排) One-inlet (copper busbar), one-outlet (copper busbar)	銅排寬度≤18 Width of copper busbar≤18	31×N+9/115/76(93)
XKM/JH27-95C	一路進(銅排)一路出(電纜) One-inlet (copper busbar), one-outlet (cable)	進(寬≤18)出16-95 Inlet(Width≤18)Outlet 16-95	31×N+9/115/76(93)
XKM/JH27-95D	一路進(電纜)二路出(電纜) One-inlet (cable), two-outlet (cable)	進16-95出16-50 Inlet 16-95 Outlet 16-50	31×N+9/115/88(105)
XKM/JH27-95E	一路進(銅排)二路出(電纜) One -inlet (copper busbar), two-outlet (cable)	進(寬≤18)出16-50 Inlet(Width≤18)Outlet 16-50	31×N+9/115/88(105)
XKM/JH27-95F	一路進(電纜)四路出(電纜) One-inlet (cable), four-outlet (cable)	進16-95出10-25 Inlet 16-95 Outlet 10-25	31×N+9/115/88(105)
XKM/JH27-95G	一路進(銅排)四路出(電纜) One-inlet (copper busbar), four-outlet (cable)	進(寬≤18)出10-25 Inlet(Width≤18)Outlet 10-25	31×N+9/115/88(105)
XKM/JH27-95H	一路進(電纜)六路出(電纜) One-inlet (cable), six-outlet (cable)	進16-95出10-25 Inlet 16-95 Outlet 10-25	31×N+9/115/88(105)
XKM/JH27-95J	二路進(電纜)二路出(電纜) Two-inlet (cable), two-outlet (cable)	進16-95出16-95 Inlet 16-95 Outlet 16-95	31×N+9/115/88(105)
XKM/JH27-95K	二路進(電纜)四路出(電纜) Two-inlet (cable), four-outlet (cable)	進16-95出10-25 Inlet 16-95 Outlet 10-25	31×N+9/115/88(105

額定電壓/電流/截面Rated voltage/current/section: 1000V/160A/95mm2
壓線螺釘Crimping screw:M10 擰緊力矩Tightening torque (Nm):20
剝線長度Striping length(mm):30 安裝螺釘Mounting screw:M5


XKM/JH27-150mm2 訂貨號(Order No.): 110174

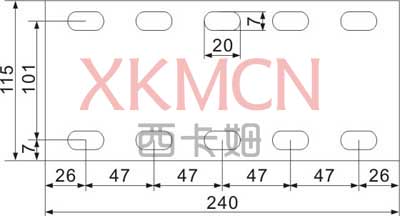

產品型號 Product mode	型式 Type	壓線范圍mm2 Crimping range	外形尺寸 Outline size (厚/T寬W/高Hm m)
XKM/JH27-150	一路進(電纜)一路出(電纜) One-inlet (cable), one-outlet (cable)	25-150	31×N+9/115/88(105)
XKM/JH27-150B	一路進(銅排)一路出(銅排) One-inlet (copper busbar), one-outlet (copper busbar)	銅排寬度≤18 Width of copper busbar≤18	31×N+9/115/88(105)
XKM/JH27-150C	一路進(銅排)一路出(電纜) One-inlet (copper busbar), one-outlet (cable)	進(寬≤18)出25-150 Inlet(Width≤18)Outlet25-150	31×N+9/115/88(105)
XKM/JH27-150D	一路進(電纜)二路出(電纜) One-inlet (cable), two-outlet (cable)	進25-150出16-70 Inlet 25-150 Outlet 16-70	46×N+9/115/103(120)
XKM/JH27-150E	一路進(銅排)二路出(電纜) One -inlet (copper busbar), two-outlet (cable)	進(寬≤25)出16-70 Inlet(Width≤25)Outlet 16-70	46×N+9/115/103(120)
XKM/JH27-150F	一路進(電纜)四路出(電纜) One-inlet (cable), four-outlet (cable)	進25-150 出10-35 Inlet 25-150 Outlet 10-35	46×N+9/115/103(120)
XKM/JH27-150G	一路進(銅排)四路出(電纜) One-inlet (copper busbar), four-outlet (cable)	進(寬≤25)出10-35 Inlet(Width≤25)Outlet 10-35	46×N+9/115/103(120)
XKM/JH27-150H	一路進(電纜)六路出(電纜) One-inlet (cable), six-outlet (cable)	進25-150出10-35 Inlet 25-150 Outlet 10-35	46×N+9/115/103(120)
XKM/JH27-150J	二路進(電纜)二路出(電纜) Two-inlet (cable), two-outlet (cable)	進25-150出25-150 Inlet 25-150 Outlet 25-150	46×N+9/115/103(120)
XKM/JH27-150K	二路進(電纜)四路出(電纜) Two-inlet (cable), four-outlet (cable)	進25-150出10-35 Inlet 25-150 Outlet 10-35	46×N+9/115/103(120)

額定電壓/電流/截面Rated voltage/current/section: 1000V/250A/150mm2
壓線螺釘Crimping screw:M10 擰緊力矩Tightening torque (Nm):20
剝線長度Striping length(mm):30 安裝螺釘Mounting screw:M5


XKM/JH27-240mm2 訂貨號(Order No.): 110175

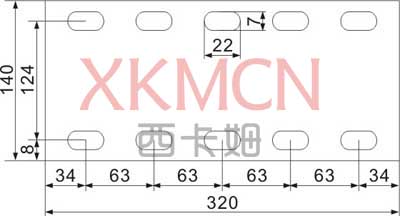

產品型號 Product mode	型式 Type	壓線范圍mm2 Crimping range	外形尺寸 Outline size (厚/T寬W/高Hm m)
XKM/JH27-240	一路進(電纜)一路出(電纜) One-inlet (cable), one-outlet (cable)	35-240	46×N+9/115/103(120)
XKM/JH27-240B	一路進(銅排)一路出(銅排) One-inlet (copper busbar), one-outlet (copper busbar)	銅排寬度≤25 Width of copper busbar≤25	46×N+9/115/103(120)
XKM/JH27-240C	一路進(銅排)一路出(電纜) One-inlet (copper busbar), one-outlet (cable)	進(寬≤25)出35-240 Inlet(Width≤25)Outlet35-240	46×N+9/115/103(120)
XKM/JH27-240D	一路進(電纜)二路出(電纜) One-inlet (cable), two-outlet (cable)	進35-240出25-120 Inlet 35-240 Outlet 25-120	62×N+10/140/110(127)
XKM/JH27-240E	一路進(銅排)二路出(電纜) One -inlet (copper busbar), two-outlet (cable)	進(寬≤25)出25-120 Inlet(Width≤25)Outlet 25-120	62×N+10/140/110(127)
XKM/JH27-240F	一路進(電纜)四路出(電纜) One-inlet (cable), four-outlet (cable)	進35-240出16-70 Inlet 35-240 Outlet 16-70	62×N+10/140/110(127)
XKM/JH27-240G	一路進(銅排)四路出(電纜) One-inlet (copper busbar), four-outlet (cable)	進(寬≤25)出16-70 Inlet(Width≤25)Outlet 16-70	62×N+10/140/110(127)
XKM/JH27-240H	一路進(電纜)六路出(電纜) One-inlet (cable), six-outlet (cable)	進35-240出16-70 Inlet 35-240 Outlet 16-70	62×N+10/140/110(127)
XKM/JH27-240J	二路進(電纜)二路出(電纜) Two-inlet (cable), two-outlet (cable)	進35-240出35-240 Inlet 35-240 Outlet 35-240	62×N+10/140/110(127)
XKM/JH27-240K	二路進(電纜)四路出(電纜) Two-inlet (cable), four-outlet (cable)	進35-240出16-70 Inlet 35-240 Outlet 16-70	62×N+10/140/110(127)

額定電壓/電流/截面Rated voltage/current/section: 1000V/400A/240mm2
壓線螺釘Crimping screw: M12 擰緊力矩Tightening torque (Nm):40
剝線長度Striping length(mm): 30 安裝螺釘Mounting screw:M6


XKM/JH27-300mm2 訂貨號(Order No.): 110176

產品型號 Product mode	型式 Type	壓線范圍mm2 Crimping range	外形尺寸 Outline size (厚/T寬W/高Hm m)
XKM/JH27-300	一路進(電纜)一路出(電纜) One-inlet (cable), one-outlet (cable)	50-300	62×N+10/140/110(127)
XKM/JH27-300B	一路進(銅排)一路出(銅排) One-inlet (copper busbar), one-outlet (copper busbar)	銅排寬度≤30 Width of copper busbar≤30	62×N+10/140/110(127)
XKM/JH27-300C	一路進(銅排)一路出(電纜) One-inlet (copper busbar), one-outlet (cable)	進(寬≤30)出35-300 Inlet(Width≤30)Outlet35-300	62×N+10/140/110(127)
XKM/JH27-300D	一路進(電纜)二路出(電纜) One-inlet (cable), two-outlet (cable)	進50-300出25-150 Inlet 50-300 Outlet 25-150	72×N+10/140/137(166)
XKM/JH27-300E	一路進(銅排)二路出(電纜) One -inlet (copper busbar), two-outlet (cable)	進(寬≤30)出25-150 Inlet(Width≤30)Outlet 25-150	72×N+10/140/137(166)
XKM/JH27-300F	一路進(電纜)四路出(電纜) One-inlet (cable), four-outlet (cable)	進50-300出16-95 Inlet 50-300 Outlet 16-95	72×N+10/140/137(166)
XKM/JH27-300G	一路進(銅排)四路出(電纜) One-inlet (copper busbar), four-outlet (cable)	進(寬≤30)出16-95 Inlet(Width≤30)Outlet 16-95	72×N+10/140/137(166)
XKM/JH27-300H	一路進(電纜)六路出(電纜) One-inlet (cable), six-outlet (cable)	進50-300出16-95 Inlet 50-300 Outlet 16-95	72×N+10/140/137(166)
XKM/JH27-300J	二路進(電纜)二路出(電纜) Two-inlet (cable), two-outlet (cable)	進50-300出50-300 Inlet 50-300 Outlet 50-300	72×N+10/140/137(166)
XKM/JH27-300K	二路進(電纜)四路出(電纜) Two-inlet (cable), four-outlet (cable)	進50-300出16-95 Inlet 50-300 Outlet 16-95	72×N+10/140/137(166)

額定電壓/電流/截面Rated voltage/current/section: 1000V/630A/300mm2
壓線螺釘Crimping screw:M16 擰緊力矩Tightening torque (Nm):50 剝線長度Striping length(mm):30
安裝螺釘Mounting screw:M6
* 注：一路進，六路出的分線端子，其中二路在進線端出線。N=1，2，3，4，5；括號內數字為加裝防護罩后的尺寸。
Note: For one-inlet, six-outlet branch terminal, the two-circuit leads the wire out from the inlet terminal.
N=1, 2, 3, 4, 5; the digits in bracket are the sizes after protective cover is mounted.

三、安裝與使用 Installation & us

XKM/JH27系列接線端子采用螺釘(非導軌)安裝方式，牢固可靠。使用時只需旋松螺釘，抬起導線夾，插入導線擰螺釘，蓋上防護罩即可。
This series of terminal block is installed with the screws, firm and reliable. When using, only to loosen the screw, put up the clamp, insert the conductor, tighten the screw and, shut the protective cover down.

四、訂貨須知 Notification of order

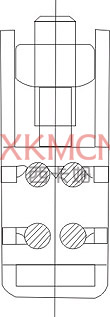

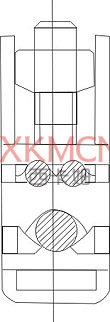

一路電纜連接，進線端或出線端。 One-circuit cable connection is available at inlet terminal or outlet terminal.	一路銅排連接，進線端或出線端。 One-circuit copper busbar connection is available at inlet terminal or outlet terminal.	二路電纜連接，進線端或出線端。 Two-circuit cable connection is available at inlet terminal or outlet terminal.	三路電纜連接，一路進線二路出線。 Three-circuit cable connection, one inlet, two outlet.	四路電纜連接，出線端或進線端。 Four-circuit cable connection is available at inlet terminal or outlet terminal.
