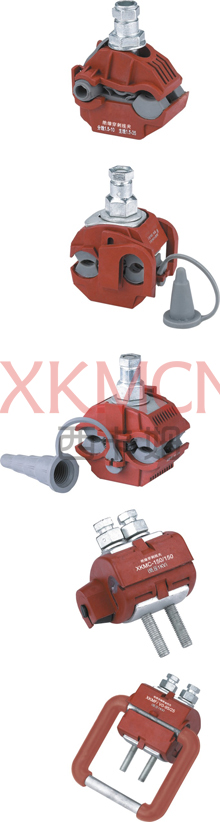

| 一、產品概述 Genera |
1. 用于建筑配電系統絕緣電纜支接、低壓架空絕緣電纜連接、低壓絕緣進戶電纜支接、路配電系燈統等，要求的耐火(NH)或阻燃(ZR)電纜的分支連接。
2. 可帶電或停電作業
3. 全部部件均帶火焰阻燃性能(通過960℃灼熱絲和垂直燃燒試驗)。
4. 穿刺線夾主體采用高強度，抗機械變化和氣候變化的絕緣材料制成。
5. 配有緊固力矩螺母的螺釘經抗腐蝕處理，力矩螺母使安裝更簡便、安全、快捷，其恒定刺壓力穿可確保電纜連接達到需要的電氣效果。
6. 穿刺線夾具有防水功能，可在水中耐受電壓1KV無擊穿現象。
7. 封密防水支線端蓋，可防止水浸入支接導線，支線端可根據需要左側或右側分支。 |
1.Used for branch connection of insulated cable for architectural distribution system, connection of LV overhead insulated cable, branch connection of LV insulated serviceentrance cable, distribution system of streetlight, etc.
2. Live-line work or power-cut work is allowable
3. All parts are with flame retardant properties (960℃ through the hot wire and vertical burning test).
4. Main body of connector is made of high strength insulating material that anti mechanical change or climatic variation.
5.The screw that is equipped with fastening torque nut is anticorrosion treated, the torque nut enables the installation to be much simple, safe and quick, its constant puncturing pressure guarantees best electrical effect for the cable connection.
6.The connector is featured with property of waterproof, it is able to withstand voltage of 1KV in water without breakdown phenomenon.
7.The waterproof sealing end cap of branch line prevents water from entering into the branch connected conductor. It can be branched on the left or right side according to the demand. |
 |
XKMC10系列穿刺線夾主要尺寸
XKMC10 Main dimensions | |
