一、外形尺寸及技術參數 D imensions& T echnicald ata |

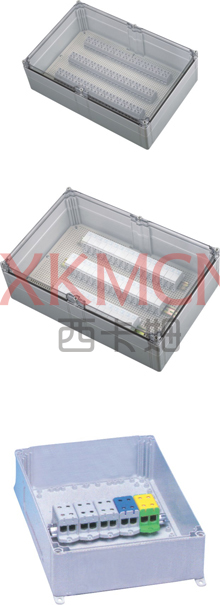

XKM/JXH-6A(300×200×140) |
| 訂購數據 Orderngid ata |
外形長/寬/高mm
Exterior length/width/height in illimeters |
300/200/140 |
|
| 材料/materials |
聚碳酸酯/Polycarbonate |
| 密封材料/Sealing materials |
聚碳酸酯/Polycarbonate PC ABS |
| 工作溫度/Work temperature |
-40℃~+85℃ |
| 防護等級/Protection grades |
IP66 |
顏色/Version
淺灰色/Shallow gray |
訂貨號/Order Number : 110504 | |
| |
|
XKM/JXH-6B(300×250×160) |
| 訂購數據 Orderngid ata |
外形長/寬/高mm
Exterior length/width/height in illimeters |
300/250/160 |
|
| 材料/materials |
聚碳酸酯/Polycarbonate PC ABS |
| 密封材料/Sealing materials |
氯丁橡膠/Neoprene |
| 工作溫度/Work temperature |
-40℃~+85℃ |
| 防護等級/Protection grades |
IP66 |
顏色/Version
淺灰色/Shallow gray |
訂貨號/Order Number : 110505 | |
| |
|
XKM/JXH-6C(400×300×160) |
| 訂購數據 Orderngid ata |
外形長/寬/高mm
Exterior length/width/height in illimeters |
400/300/190 |
|
| 材料/materials |
聚碳酸酯/Polycarbonate PC ABS |
| 密封材料/Sealing materials |
氯丁橡膠/Neoprene |
| 工作溫度/Work temperature |
-40℃~+85℃ |
| 防護等級/Protection grades |
IP66 |
顏色/Version
淺灰色/Shallow gray |
訂貨號/Order Number : 110506 | |
| |
|
XKM/JXH-6D(500×400×190) |
| 訂購數據 Orderngid ata |
外形長/寬/高mm
Exterior length/width/height in illimeters |
500/400/190 |
|
| 材料/materials |
聚碳酸酯/Polycarbonate PC ABS |
| 密封材料/Sealing materials |
氯丁橡膠/Neoprene |
| 工作溫度/Work temperature |
-40℃~+85℃ |
| 防護等級/Protection grades |
IP66 |
顏色/Version
淺灰色/Shallow gray |
訂貨號/Order Number : 110507 | |
