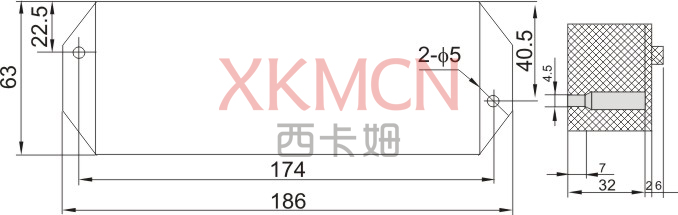

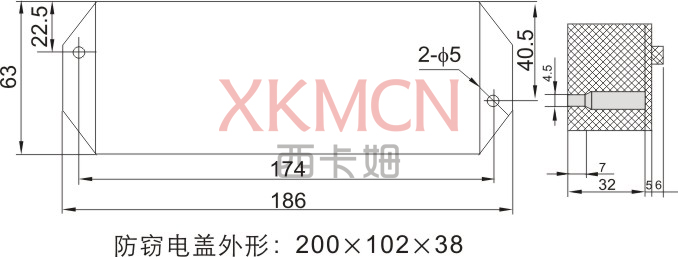

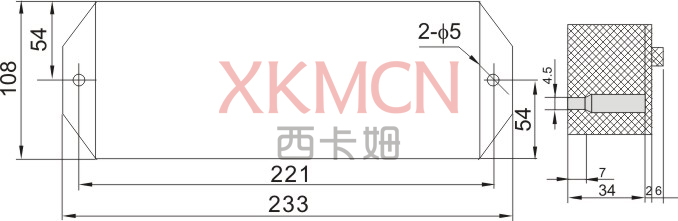

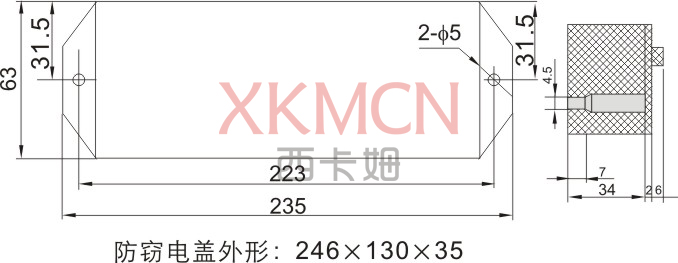

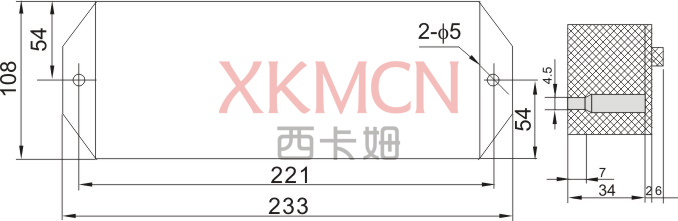

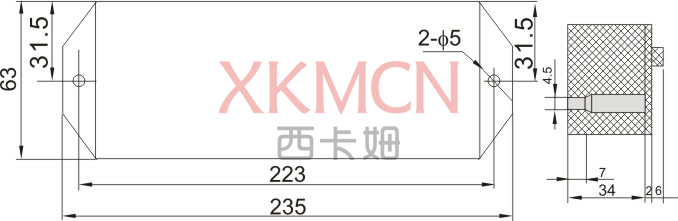

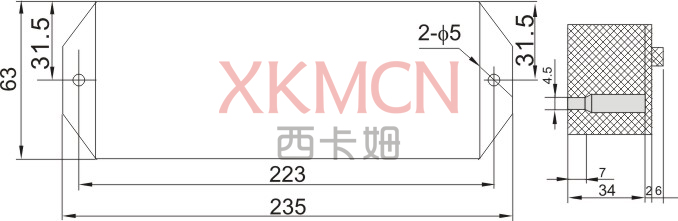

XKM/PJ1型三相四線電能計量聯合接線盒
Three-phase four-wire energy measuring combined terminal block |
| 接線舉列 Wiring example | |
三相四線 有功電度表
Three-phase four-wire active watt-hour meter |
 |

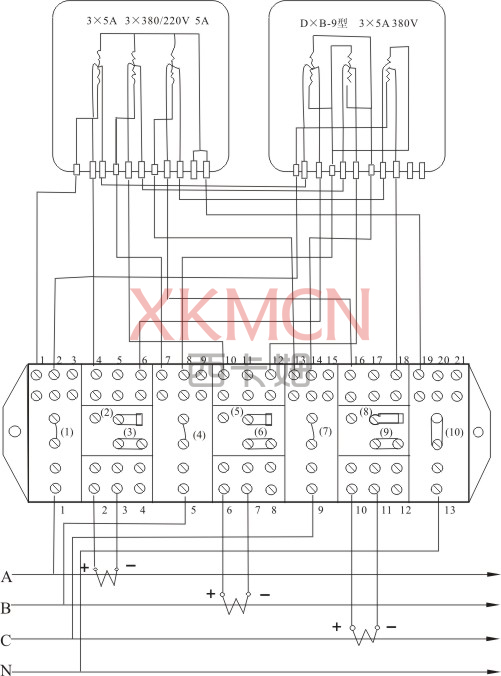

XKM/PJ1、PJ 型三相聯合接線盒一只三相四線有功電度表和一只三相無功電度表，三只流變聯合接線圖
Combined wiring diagram of XKM/PJ1 ,PJ type three-phase terminal block with three-phase four-wire active watt-hour meter and three-phase reactive watt-hour meter, and three rheometers. |
| 一、產品概述 Genera |
XKM/PJ1、2 型電能計量聯合接線盒 (也稱DFYlB、DFY2B接線盒) 是根據全國電能計量裝置統一設計組專家們的意見，在原生產的XKM/PJ1 、 2型電能計量聯合接線盒的基礎上新研制的。為配合電力系統采用標準接線及實施《電能計量裝置檢驗規程》創造了有利的條件。
該產品是電能計量裝置標準接線中的專用接線盒，也適用于額定電壓至660伏、額定電 流至20安的二次回路中，作在帶負荷情況下安全調換成現場檢驗電能表、電氣儀表、繼電保護等電氣設備之用，確保了人身操作安全，提高了現場工作效率，對提高計量正確性起到了積極的作用。 |
XKM/PJ1 、 2 type energy measuring terminal blocks are developed on the basis of former ones acco-rding to the suggestion from relevant experts of national electric power bureau.This provides a favorable environment for adopting standard wiring.
This products is specialy applied for standard wiring of energy measuring equipment, It is also suitable for secondary circuit of rated voltage up to 660V and rated current up to 20A. It is used to change or inspect the electric equipment such as energy meter, electric instrument and relaying protection equipment under on-load circumstance. It guarantees operater personal safety and improves fieldwork efficiency. It plays a positive role in improving the measuring correctness. The products can always receive favorable comments in the power system field.
|
| 二、結構特點 Structural features |
XKM/PJ1、2型電能計量聯合接線盒產品為國內首創，質量優良，由于采用了美國進口的高分子聚碳酸酯材料注制而成，色澤鮮艷，外型美觀，它具有抗沖擊強度高，不易碎裂；抗潮濕，絕緣性能好；抗老化、阻燃、耐高溫；可在-40℃至+120℃范圍內長期工作；接線鏍釘采用復合槽組合工藝，一字十字二種螺絲刀通用。其電壓回路采用一進三出，各相電壓、電流具有相序標志，即方便聯合接線，又可避免因相序接錯而造成的計量錯誤，接線盒的蓋板用兩只可封印的螺絲固定，有利于防竊電工作。
XKM/PJ1 、 2 type energy measuring terminal block have excellent quality. It adopts high-molecular polycarbonate material imported from America. It has advantages of bright and elegant appearance, high impact resistance, moisture resistance, favorable insulation; ageing resistance, flame retardant and high temperature resistant. It can work at -40℃~+120℃ for long term. The screw adopts compound recess , which is suitable for flathead screwdriver and crossed screwdriver. The voltage circuit adopts one-inlet three-outlet, All phases are marked with phase sequence, which is not only convenient for combined wiring, but also can avoid measuring error caused by wiring wrong phase sequence. The Terminal block cover is fixed with two sealing screws, which is helpful to provent electictricity-theft. |
| 二、主要技術指標 Main technical parameter |
1、 額定電壓Rated voltage：XKM/PJ1:3×380/220V XKM/PJ2：3×380V；
2、 額定電流Rated current：5A(20A)；
3、 工頻耐壓Power frequency withstanding voltage：3000V/min；
4、 絕緣電阻Insulation resistance：>30MΩ；
5、 環境溫度Ambient temperature：- 40℃~+120℃ |
 |

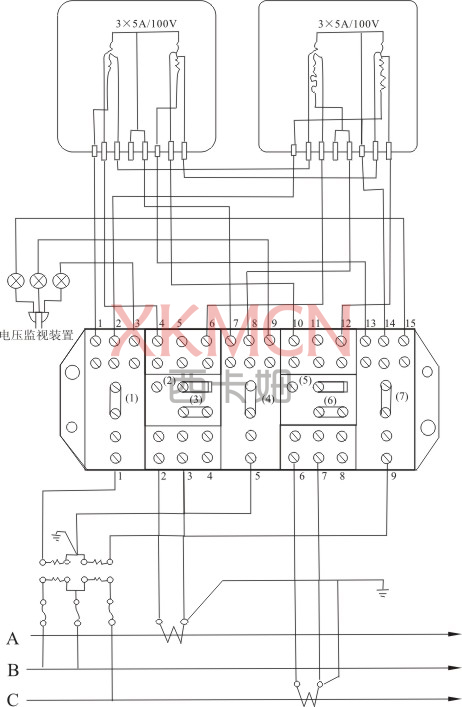

XKM/PJ2型三相三線聯合接線盒一只三相有功電度表和一只三相無功電度表，二只流變V/V接線壓變聯合接線圖
V/V variable-voltage com-bined wiring
diagram of XKM/PJ2 type three-phase
three-wire terminal block with three-
phase active watt-hour meter and two
rheometers. | |
