XKMZT/XKMFZ系列地埋式防水接線盒

當前位置：

產品中心

XKMZT/XKMFZ系列地埋式防水接線盒

XKMZT/XKMFZ系列地埋式防水接線盒

如果您有任何問題可以聯系我們！
聯系我們
一、產品概述 Genera
        埋式系地列防水接線盒主要應用于電線電纜、通訊電纜及信號電纜連接處的保護。本產品屬于固化防護，不會有任何水和空氣與電纜連接點產生接觸，所有可以直接埋地下。所生產的地埋式防水接線盒具有防水防潮、防爆、防電火花、耐酸、耐堿、外型美觀、品質穩定、完全絕緣不導電、抗撞擊不變形等特點。其廣泛應用供電、通信、市政、水利、園林景觀、路燈、隧道等領域。
        This buried series waterproof junction box is mainly applicable to joint part protection of wires & cables, communication cables and signal cables, it belongs to curing protection, preventing the junction point from contacting with water or air, can be directly buried in the ground. The product is
featured with waterproof, dampproof, explosion-proof, electric spark-proof, acid-resistant, alkaliresistant, elegant appearance, stable quality, fully insulated, nonconductive, counter-tup and hold size, is widely applied to such fields as power supply, communication, city planning, water conservancy, landscape architecture, streetlight, tunnel, etc.
二、產品特性 Characteristics
1、適用于所有低壓電力電纜、通訊電纜及信號電纜。
2、施工簡便、快捷、可靠，工程造價低。
3、采用樹脂澆注技術，連接處采用進口密封膠，密封性能好。
3、電纜分支接頭，節省空間和電纜。
4、具有防水、耐腐蝕、耐磨、防高溫、抗老化、抗壓強度高、阻燃性能好、電壓絕緣性強特 點 。等
5、可長久保持電纜連接處接近于原電纜的電氣性能。
1. It is applicable for all low-voltage power cables, communication cables and signal cables.
2. Simple construction, quick, reliable, low construction cost.
3. Adoption of resin casting technology, the joint part adopts imported sealant, with good sealing performance.
3. Advanced cable branching joint, saves space and cable.
4. It is featured with waterproof, anticorrosion, wearable, high-temperature resistant, anti-aging, high compressive strength, good flame retardant property, strong voltage insulation, etc.
5. Keep almost original electric performance for joint part of cable for long term.
三、安裝說明 Installation
1、剝除電纜需要連接處的外皮，長度應小于模盒長；
2、選用一種連接方式，分支或?qū)?，建議使用XKM絕緣穿刺線夾；
3、將海綿條纏繞在電纜連接的兩端，合上模盒；
4、將A和B組樹脂膠按一定比例進行混合，攪拌均勻后倒入模盒內，安裝完成；
5、樹脂固化速度與溫度有關，溫度越高固化就越快，在常溫下約為一小時。
1. Peel off outer skin of cable for connecting, length should be smaller than that of moldbox;
2. Select a connecting mode, branching or butt joint, suggest using XKM insulation piercing connector;
3. Wrap the sponge strip on the two ends of cable joint, close the mold box;
4. Mix the resin adhesive of groups A and B in certain proportion, stir uniformly, then pour into the mold box, now the installation is finished;
5. Resin curing speed bears a relation with the temperature, the higher temperature, the quicker curing, and it spends about one hour for curing under normal temperature.
在使用和灌注填充樹脂過程中務必注意以下事項：
Notices for using and pouring the filling resin:
1、 一定要充分均勻調配樹脂A、B料。
2、 立即把調配好的樹脂倒入分支盒中，如耽誤時間太久易使樹脂 變?nèi)莩砩踔凉袒?BR>3、 安裝時戴手套。
4、 施工現場應保持良好的通風條件。
5、 應避免皮膚、眼睛與樹脂直接接觸，如不慎入眼，請
大 量 清 水 沖用洗，并就醫治療。		 1. Must prepare the resin group A and B uniformly and evenly.
2. Pour the well-prepared resin into the branching box immediately, as the resin will thicken up and even cure if it is delayed too long.
3. You’d better wear gloves when installing.
4. Keep good ventilation condition in construction site.
5. Don’t contact with skin or eyes directly, in case of accidental eye exposure occurs, rinse with lots of clean water and consult themedical doctor immediately.
四、產品標準 Standards
1、GB/T1040-2006塑料拉伸性能實驗方法
2 GB/T1410-2006固體絕緣材料體積電阻率和表面電阻實驗方法率
3 GB/T2411-1980塑料邵氏硬度實驗方法
4 GB/T2794-1995膠粘劑粘度的測定
5 GB/T1408.1-2006固體絕緣材料電氣強度試驗方法
6 GB/T14153-1993硬質塑料落錘沖擊試驗方法
1. GB/T1040-2006 Plastics-Determination of tensile properties
2. GB/T1410-2006 Methods of test for volume resistivity and surface resistivity of solid electrical insulating materials
3. GB/T2411-1980 Plastics-Shore hardness test
4. GB/T2794-1995 Determination methods for viscosity of adhesives
5. GB/T1408.1-2006 Electrical strength of insulatingmaterials-Testmethods
6. GB/T14153-1993 General test method for impact resistance of rigid plastics by means of falling weight
1、電纜做好連接后，將分支處主纜與分纜之間放入分支海綿卡，并用扎帶固定，將白色海綿條纏在與絕緣防水盒等長處的電纜兩端。
1. After the cable is well connected, take the branching part
between main cable and branching cable into the branching
sponge clip, tightened by cable tie, wrap the white sponge
strip on the two ends of cable whose length is equal to that of insulating waterproof box.
2、將U型密封件卡在海棉條上。
2. Use the U-shaped sealing element to clamp the sponge strip.
3、合上絕緣防水盒，用配套的塑料卡條卡住。將緣絕防水密封
膠按說明書混合后倒入絕緣防水盒中。
3. Close the insulating waterproof box, use plastic fastener to fix it. Mix the insulating waterproof sealant evenly according to the operation instruction and pour into the insulating waterproof box.		 4、安裝完成，固化1 2個小時后可置于水下工作。
4. After the installation, cure for 12h, then it can be used underwater.
五、主要技術指標 Maint echnicalp arameter
防水盒密封膠
1、外觀：A組份：淺黃色透明液體；B組份：棕色透明液體
2、粘度：在25℃下,A組份≤1000mPa.S,B組份≤500mPa.S
3、固化時間：在25? 下，固化時間30-60分鐘
4、表面電阻率：≥4 77×1013Q
5、體積電阻率：≥3.14×1013Q
6、拉伸強度：≥2.5Mpa
7、斷裂伸長率：≥56%
8、邵氏A硬度：≥70A
9、絕緣強度：≥35kv/mm
10、適應溫度：-40℃+80℃
11、耐酸堿性能：于0 1 mol/L氫氧化鈉和0.1 mol/L鹽酸中24小時無變化
Sealant of waterproof box
1. Appearance: A constituent: pale yellow transparent liquid;
                            B constituent: brown transparent liquid
2. Viscosity: at 25℃ , A constituent ≤1000mPa.S,
                                      B constituent ≤500mPa.S
3. Curing time: at 25? , curing time is 30-60min
4. Surface resistivity: ≥4 77×1013Q
5. Volume resistivity: ≥3.14×1013Q
6. Tensile strength: ≥2.5Mpa
7. Elongation at break: ≥56%
8. Shore hardness: ≥70A
9. Insulating strength: ≥35kv/mm
10. Adaptive temperature: -40℃ +80℃
11. Acid and alkali resistant: no change in sodium hydroxide of 0 1
mol/L and hydrochloric acid of 0.1 mol/L.
六、絕緣防水密封膠使用說明 Use of insulating waterproof sealant
使用說明：
1、先將A組份與B組份密封膠之間的間隔棒打開，然后充分揉和
2 — 3 分 鐘 ，直至均勻。
2、立即將混合好的密封膠倒入絕緣防水盒中，如耽誤時間太長易 使密封膠容變稠甚至固化。
Directions for use:
1. Open the spacing rod between A constituent and B constituent sealants, temper them fully for 2-3 minutes until well distributed.
2. Pour the well-mixed sealant into insulating waterproof box immediately, as the sealant will thicken up and even cure if it is delayed too long.
注意事項：
1、安裝時戴好PE手套(隨配件一起附送)，如條件允許，可戴上眼鏡及口罩。
2、固定時間受環境溫度影響，在常溫25℃下固化時間為1小時，溫度越低，固化時間相應加長；溫度越高，固化時間越短。
3、施工現場應保持較好的通風條件。
4、未進行灌澆密封膠的置于通風陰涼處，在保質期內使用。密封膠不可暴曬，或與其它化學類產品堆置。
Notices:
1. Wear the PE gloves (delivered along with the spare parts) when installing, also wear glasses and respirator if the conditions permit.
2. Curing time bears a relation with the temperature, it is 1h under normal temperature 25? , the lower temperature, the longer curing time; the higher temperature, the shorter curing time.
3. Keep good ventilation condition in construction site.
4. Sealant that has not been used should be placed in draughty and cool place, and use it within the warranty period. The sealant should not be subject to insolation, or stacked with other chemical products.
七、產品結構 Product structure

1、采用全新聚碳酸酯PC材料或聚丙稀PP制成的外殼，
保證產品的強度與韌性，長期不變形、不老化。

1. The shell is made of brand new PC material or PP
material, guarantees strength and toughness of product,
no distortion or aging for long term.


2、采用環保型泡沫材料制成的密封件，使產品安裝時更加簡便。
2. Sealing element is made of environmental protection foam, which enables the product installation to be simpler.
3、采用3M技術的絕緣防水密封膠，質量可靠，固化后可放
心使用30年。
3. Insulating waterproof sealant adopts 3M technology,
with reliable quality, it can be used reliably for 30 years

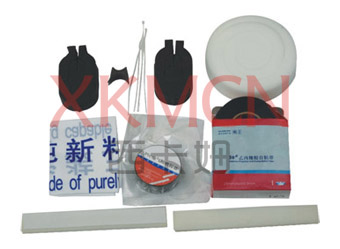

after curing. 		4、全套的安裝附件，讓您安裝更省事。
4. Complete set of mounting accessories enables the
installation to be more convenient.

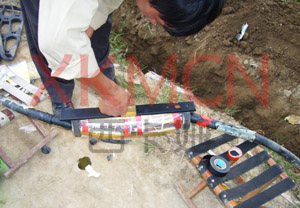

八、案例應用參考 Application cases for reference

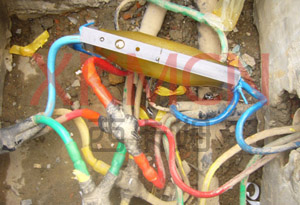

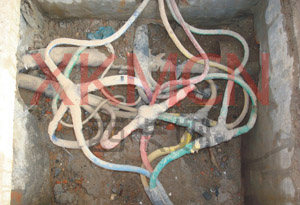

因雨季漲水導致的電纜接頭進水問題。
Water enters into the cable joint due to swelling
in rainy seasons.		   運行三個月后進行對比，使用我公司絕緣防水盒后的接頭不再進水，其它三向未使用的接頭頻頻導致跳閘。
Afterh rete omnths fou nrning, on awter nteers ntoi het jointh at ash seud uorn siulating awterproof oxb, utb the thoerh rete oinjts hatt idd ont seu uor ropducts ript frequentl

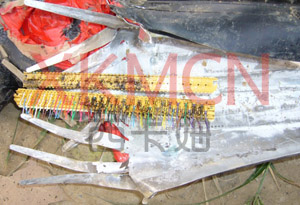

長期地埋，通信線路進水短路，有時一周就得換線或修理，無法徹底解決，電纜護套成了"水管”
Long-term buried, communication line has short-circuit due to water entering, sometimes, the line must be changed as frequent as one week, and the cable sheath become a "water pipe”.		   使用我公司絕緣防水盒，通過完全防水密封材料填充后，完全封堵住開剝過的外護套，已使用1年多時間，再沒有發生一起短路問題。
After using our insulating waterproof box, the outer
sheath that has ever been opened are fully enveloped by filling waterproof sealing materials, no short-circuit problem any more in more than one year of running.

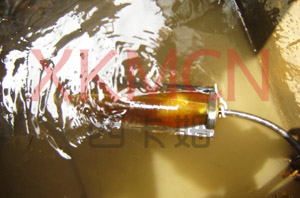

●在某些特殊的場合，接頭必須長期置于水下，我公司為此提供的絕佳的方案一一電纜絕緣防水盒。
In some special occasions, the joint must be set under- water for long term, so our company provides a supere- xcellent solution aiming at this problem-cable insulating waterproof box. 		  ●在國內很多路燈照明工程，如：城市路燈、水下景觀燈、庭園燈等。大型照明工程都采用了本公司生產的埋地絕緣防水盒。

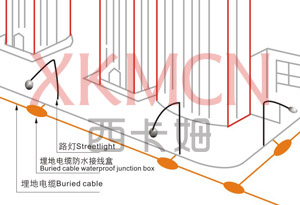

A lot of domestic streetlamp lighting projects such as urban streetlights, underwater landscape lights, garden lights and other large-scale lighting projects have adopted our buried insulating waterproof box.
九、技術參數 Technicald ata
XKMZT-1直通型地埋式防水接線盒
XKMZT-1 serie
型 號
Model		 電纜外徑
(mm2)Cable
ins ulation
O.D.Range		 ******截面范圍(mm2)
Max conductor section		 產品尺寸
mm
Product size		 填充
重量
Filling
weight 		訂貨號
Order no .
無鎧電纜
Non armor		 帶鎧電纜
Armor
XKMZT-1 8-22 3×16 4×16 3×10 4×10 185×40×45 150g 110722

XKMZT-2直通型地埋式防水接線盒
XKMZT-2 serie
型 號
Model		 電纜外徑
(mm2)Cable
ins ulation
O.D.Range		 ******截面范圍(mm2)
Max conductor section		 產品尺寸
mm
Product size		 填充
重量
Filling
weight 		訂貨號
Order no .
無鎧電纜
Non armor		 帶鎧電纜
Armor
XKMZT-2 14-30 3×35 4×25 3×16 4×16 270×55×55 365g 110723

XKMZT-3直通型地埋式防水接線盒
XKMZT-3 series
型 號
Model		 電纜外徑
(mm2)Cable
ins ulation
O.D.Range		 ******截面范圍(mm2)
Max conductor section		 產品尺寸
mm
Product size		 填充
重量
Filling
weight 		訂貨號
Order no .
無鎧電纜
Non armor		 帶鎧電纜
Armor
XKMZT-3 23-37 3×50 4×50 3×50 4×35 355×65×60 620g 110724

XKMZT-4直通型地埋式防水接線盒
XKMZT-4 serie
型 號
Model		 電纜外徑
(mm2)Cable
ins ulation
O.D.Range		 ******截面范圍(mm2)
Max conductor section		 產品尺寸
mm
Product size		 填充
重量
Filling
weight 		訂貨號
Order no .
無鎧電纜
Non armor		 帶鎧電纜
Armor
XKMZT-4 28-47 3×95 4×95 3×95 4×70 400×90×75 1300g 110725
XKMZT-5直通型地埋式防水接線盒
XKMZT-5 series
型 號
Model		 電纜外徑
(mm2)
Cable
ins ulation
O.D.Range		 ******截面范圍(mm2)
Max conductor section		 產品尺寸
mm
Product size		 填充
重量
Filling
weight 		訂貨號
Order no .
無鎧電纜
Non armor		 帶鎧電纜
Armor
XKMZT-5 45-65 3×240 4×240 3×240 4×240 485×220×180 12000g 110726

XKMFZ-2分支型地埋式防水接線盒
XKMFZ-2 series
型 號
Model		 ******電纜外徑(mm2)
Max cable ins
ulation O.D.Range		 ******截面范圍(mm2)
Max conductor section		 產品尺寸
mm
Product size		 填充
重量
Filling
weight 		訂貨號
Order no .
主回路 分支回路 主回路 分支回路
XKMFZ-F2 15 15 4×15－6 4×15－4 175×75×40 140g 110727

XKMFZ-3分支型地埋式防水接線盒
XKMFZ-3 series
型 號
Model		 ******電纜外徑(mm2)
Max cable ins
ulation O.D.Range		 ******截面范圍(mm2)
Max conductor section		 產品尺寸
mm
Product size		 填充
重量
Filling
weight 		訂貨號
Order no .
主回路 分支回路 主回路 分支回路
XKMZT-3 29 22 4×16－25(35) 4×6－16 175×110×76 500g 110728

XKMZT-4直通型地埋式防水接線盒
XKMZT-4 serie
型 號
Model		 ******電纜外徑(mm2)
Max cable ins
ulation O.D.Range		 ******截面范圍(mm2)
Max conductor section		 產品尺寸
mm
Product size		 填充
重量
Filling
weight 		訂貨號
Order no .
主回路 分支回路 主回路 分支回路
XKMZT-4 29 22 4×16－25(35) 4×6－16 300×110×76 1000g 110729
XKMFZ-5分支型地埋式防水接線盒
XKMFZ-5 series
型 號
Model		 ******電纜外徑(mm2)
Max cable ins
ulation O.D.Range		 ******截面范圍(mm2)
Max conductor section		 產品尺寸
mm
Product size		 填充
重量
Filling
weight 		訂貨號
Order no .
主回路 分支回路 主回路 分支回路
XKMFZ-5 35 25 4×35－70(95) 4×6－25 400×125×100 2500g 110730

XKMFZ-8分支型地埋式防水接線盒
XKMFZ-8 series
型 號
Model		 ******電纜外徑(mm2)
Max cable ins
ulation O.D.Range		 ******截面范圍(mm2)
Max conductor section		 產品尺寸
mm
Product size		 填充
重量
Filling
weight 		訂貨號
Order no .
主回路 分支回路 主回路 分支回路
XKMFZ-8 65 56 4×95－240 4×6-150 485×220×180 13000g 110731

XKMFZ-9分支型地埋式防水接線盒
XKMFZ-9 series
型 號
Model		 ******電纜外徑(mm2)
Max cable ins
ulation O.D.Range		 ******截面范圍(mm2)
Max conductor section		 產品尺寸
mm
Product size		 填充
重量
Filling
weight 		訂貨號
Order no .
主回路 分支回路 主回路 分支回路
XKMFZ-9 55 36 4×35－150 4×6－70 295×175×130 2000g 110732
