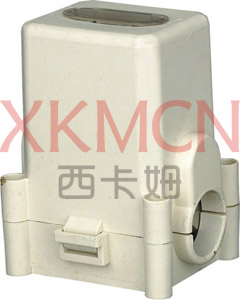

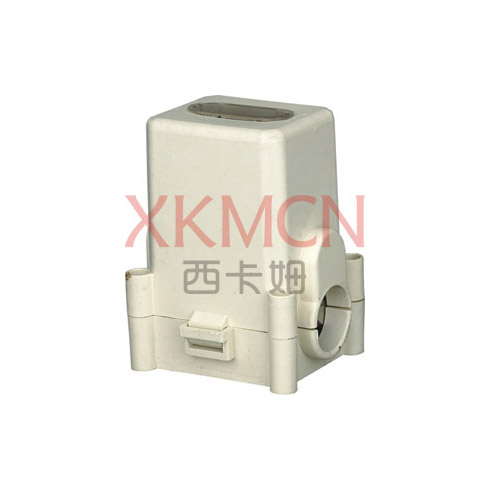

| 一、產品概述 General |
| JXT2系列電纜"T”接端子主要適用于建筑、工業電氣設備中作主電纜(干線)不能切斷時的"T”形分線連接用。該產品在繼承TJXT1系列"T”接端子的所有優點的基礎上突出了其安全防護性功能，同時從產品外形到內在結構上進行更精心的突破性的工業設計，使其不僅具有纖小離現的外形，同時更具有可靠緊湊的內部結構。該產品的推出在大大提高了其性能價格比的同時也拓展了其使用范圍，給設計師們提供了足夠的想象空間，是電纜"T”接端子產品領域里的一朵奇花。 本產品符合IEC60947-7-1，GB1404B.7,1和JB/9659.1標準。 JXT2 series T-type connector is used for branch line "T”connection in the construction and industrial electric equipment when cable trunk can’t be cut off. On the basis of advantage of TJXT1 series T-type connector, it shows its highlight of safety protection, and makes a breakthrough in design. This launch of the connector, not only greatly increases the performance/price ratio, but also expands the service range, so as to provide designer with enough imagination space. It stands out in the industry of cable T-type connector. The products are in conformity with IEC60947-7-1，GB1404B.7,1 and JB/9659.1. |
| 二、產品優點 Advantages |
| 1. 現實電纜不切斷時的干線分線，組態靈活。 2. 實現銅或鋁導體的可靠連接，實現銅——鋁過度。 3. 所有電性能指標均符合IEC國際標準，具導電性好、電阻損耗低、電壓降小等優點，接觸壓 降 僅點為1.98mV，是國際標準的2/3。 4. 較強耐熱性和抗沖擊能力，可承受120A/mm2的短路強度試驗，絕緣基座采用 VO 級阻燃程 塑 料工制作、耐老化性能優良。 5. 安裝方便，節省施工工時，不用線鼻子(端頭)，實現裸導體連接，深受施工隊伍歡迎。 6. 與插接式母線槽及分支電纜相比，節省50％-70％的工程費用。 1. Easy branching of trunk line when the cable is not cut off, flexible combination. 2. Reliable connection of copper or aluminum conductor and the transition between copper and aluminum 3. All electric performance parameter in accordance with IEC requirements, perfect electricity conductivity, low resistance loss, little voltage drop, and the contact drop 1.98V. 4. Strong heat endurance and impact resistance, withstanding short-circuit strength test of 120A/mm2, the insulator foot made of incombustible material of VO class, shows perfection in aging resistance. 5. Convenient installation, saving time for construction, not need lug, realizing bare conductor connection, favored by construction teams. 6. Compared with plug-in bus ducts and branch cables, it can save 50%~70% of engineering expense. |
| 三、結構特點 Feature |
| JXT2系列電纜"T”接端子由絕緣基座、接線框、防護罩三部分組成、接線框由導線夾、螺釘、螺母和變承框等零件組成，結線夾與導線接觸面呈包容形的犬牙交錯結構，具有接觸面大、壓接可靠的特點。通過不同形狀的導線突的相互組合，可形成雙層接線，下層接入主干線，上層接入分支線，形成干線不斷的"T”形連接。產品為防護型，尤其適合在電纜橋架和電纜井道等狹小場所中使用，能有效地防止鼠患對線路的危害。 This series of connector is composed of insulator foot, wire frame, protective cover. The wire frame is made up of clamp, screw, nut and supporting fixture, etc.A closed interlocking structure is formed between clamp and conductor contact surface with large contact surface and reliable crimping, Through combinations of different shapes of clamps, a double-layer connection can be formed, which makes the trunk line be connected f rom the lower layer and branch l ine be connected from the upper layer. Thus,"T”connection is formed. The product is protection type, especially suitable for the narrow locations like cable tray and cable shaft, to effectively prevent the circuit being damaged by mouse. |
| 四、安裝 Installation | |||||||||||||||||||||||||||||||||
| JXT2系列電纜"T”接端子有以下三種安裝方式： 1、卡駐在安裝軌(TH-35頂螺軌)上 2、接線完畢后即附著在主干線上 3、用螺釘安裝在底板或是墻壁上，安裝時儀用二個安裝孔呈對角線安裝 ① 打開的護罩(見圖3) ② 取出螺釘、導線夾、裝入主干線、裝上導線夾和螺釘(見圖4) ③ 帶上防護罩并擰緊安裝螺釘(見圖5) ④ 揭開透明頂蓋旋松接線螺釘裝入分支線后擰緊螺釘蓋上透明頂蓋即可(見圖6) Three ways to install this series of connector: 1. Plug it in the mounting rail (TH-35 top-hat rail),(only for type JXT1-50). 2. Attach it to the trunk line after connection. 3. Mount it on the bottom plate or wall with the screw, adopt the way of diagonal line installation with two mounting holes | |||||||||||||||||||||||||||||||||
| 五、使用步驟 Instruction for use | |||||||||||||||||||||||||||||||||
| ① 打開的護罩(見圖3) ② 取出螺釘、導線夾、裝入主干線、裝上導線夾和螺釘(見圖4) ③ 帶上防護罩并擰緊安裝螺釘(見圖5) ④ 揭開透明頂蓋旋松接線螺釘裝入分支線后擰緊螺釘蓋上透明頂蓋即可(見圖6) Three ways to install this series of connector: 1. Plug it in the mounting rail (TH-35 top-hat rail),(only for type JXT1-50). 2. Attach it to the trunk line after connection. 3. Mount it on the bottom plate or wall with the screw, adopt the way of diagonal line installation with two mounting holes ① Open the protective cover ② Take the screw and clamp out, connect the trunk line and assemble the clamp and screw ③ Put the protective cover on and tighten the mounting screw ④ Open the top transparent cover, loosen the connection screw, then connect the branch wire, at last tighten the screw and shut the transparent cover down. | |||||||||||||||||||||||||||||||||
| 六、產品結構圖 Product structure diagram | |||||||||||||||||||||||||||||||||
 | |||||||||||||||||||||||||||||||||
| 七、主要參數 Maint echnicalp arameter | |||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||
|
XKM/JXT2-185mm
XKM/JXT2-240mm
