通用的連接技術，無需壓接端頭，
高接觸壓力，寬范圍線徑，
對震動電線壓緊和溫度變化的保護，
具有很好的抗拉性和優秀的電氣接觸。 | |
| 一、產品概述 General |

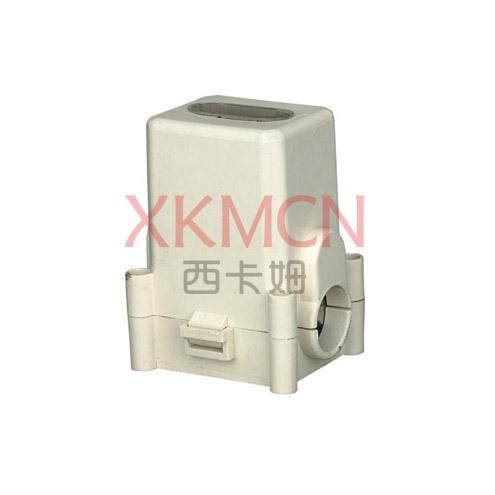

XKM/JHD-6系列自升計量箱接線盒，符合安全防護、美觀、接線方便、安裝穩固等要求。使用于額定電壓660V，頻率50Hz或60Hz，進線端連接導線的大截面為2.5-50(70)mm2，出線端連接導線為0.75-16mm2。本產品采用自升螺釘壓線夾直接壓接方式。在壓線夾與螺釘之間形成自鎖，在震動條件下也不會松動脫落，在長時間的使用過程中給您帶來免維護的方便。
XKM/JHD-6 series terminal block for measuring box reaches the requirements ofsafe protection, gracefulness, convenience connection, stable installation, etc. It issuitable for the circuit of rated voltage 660V, frequency 50Hz or 60Hz, and connectionconductor at inlet terminal up to 2.5~50(70) mm2 max and outlet terminal up to 0.75~16mm2. It employs direct crimping way by self-elevating screw clip that forms a self-locking structure between clamp and screw. This structure enables the terminal blocknot to loose under a shock. | |
